DESCRIPTION

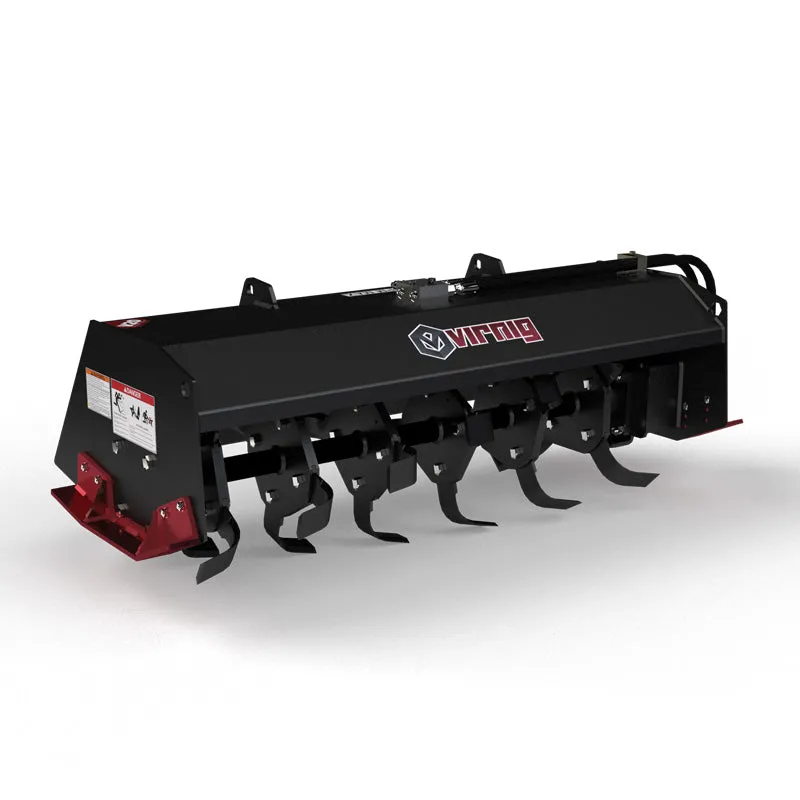

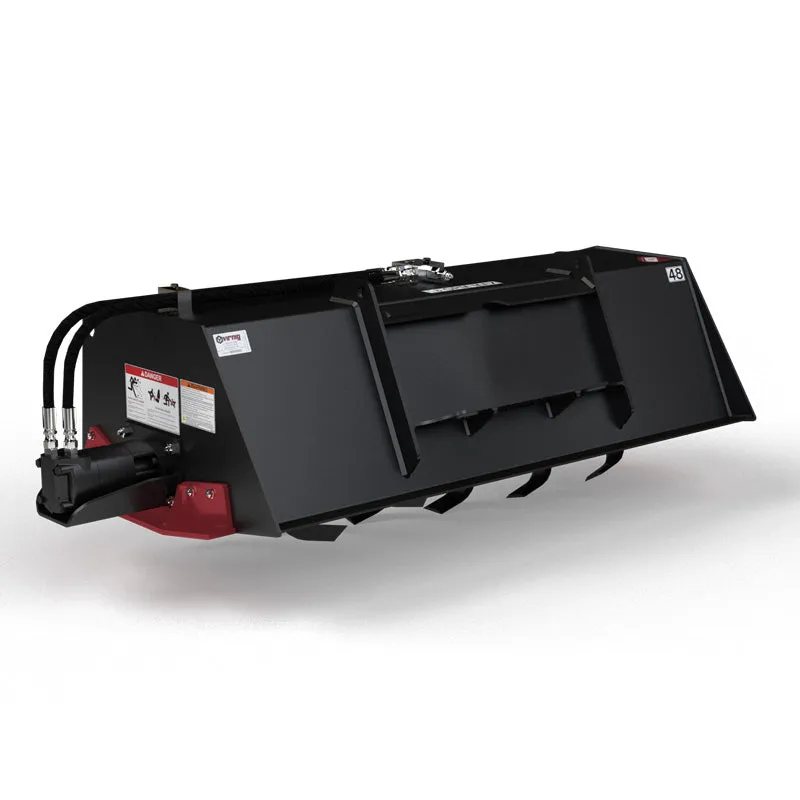

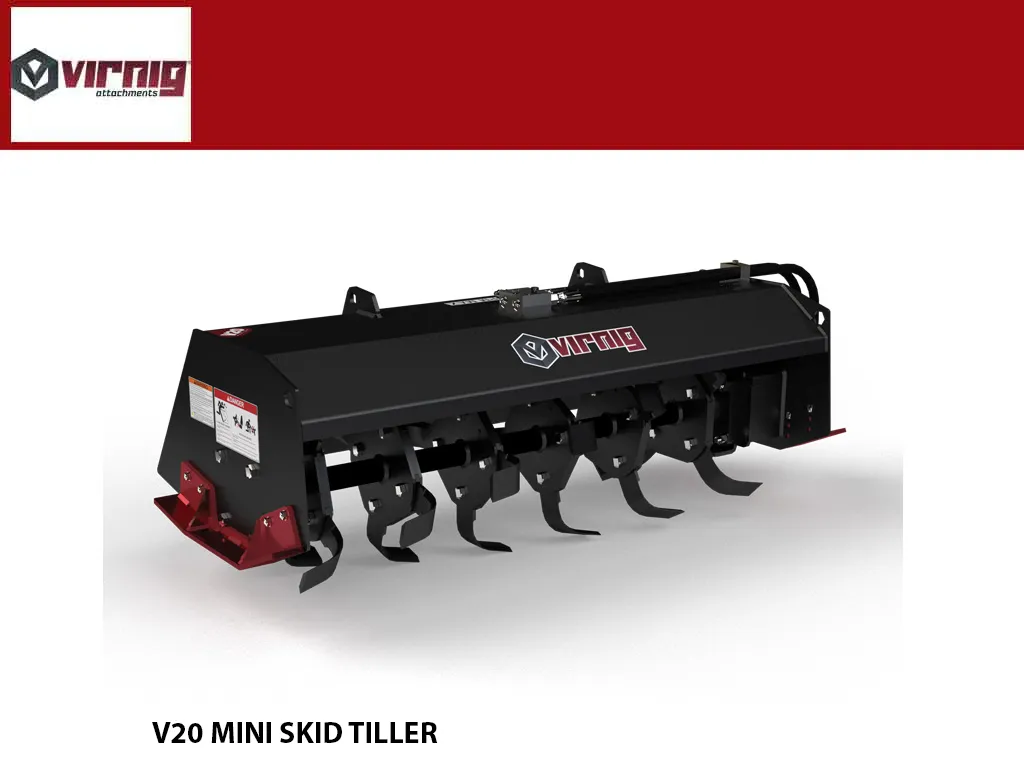

V20 Mini Skid Steer Tiller
High torque Eaton® motor and heat-treated tines deliver ground breaking performance. Available Width 48″
- BOLT-ON, HEAT-TREATED DUAL-EDGE TINES FOR BI-DIRECTIONAL OPERATION & LONGEVITY
- ADJUSTABLE SKID SHOES PROVIDE 4” – 6” TILLING DEPTH
- TILLER SHAFT SUPPORTED BY 2″ DIAMETER BEARINGS ON EACH SIDE
- GUARDED MOTOR ON BOTTOM & SIDES
SPECIFICATIONS
| Working Width (Inches) | 48.0 | ||||
| Overall Width (Inches) | 64.9 | ||||
| Overall Height (Inches) | 22.2 | ||||
| Overall Depth (Inches) | 26 | ||||
| Tilling Depth (Inches) | 6.0 | ||||
| Drum Diameter (Inches) | 18.5 | ||||
| Number of Tines | 24 | ||||
| Recommended Flow Rate (GPM) | 10-18 | ||||
| Approximate Weight (Pounds) | 470¹ | ||||
| Recommended Loader Capacity | Greater than 500 pounds | ||||
